OAUTH Builder

This page explains the OAuth Builder connection type in ABM Warranty. Builder is intended for cases where you need to define contract behavior directly instead of using a prebuilt profile.

Builder Wizard Flow (High-Level)

Step 1: OAuth Connection Basics

Enter the base URL, token URL, client ID, client secret, and optional scope or audience details. The connection must validate OAuth before contract setup can proceed.

Step 2: API Contract

Define required fetch and update endpoints by entity, plus method and formatter. This contract drives lookup behavior, destination sampling, and outbound update requests.

Step 3: Field Mapping

Choose destination fields for ABM source fields and define action and formatter behavior for each. Builder does not assume profile defaults, so the destination field path is explicitly selected by the operator.

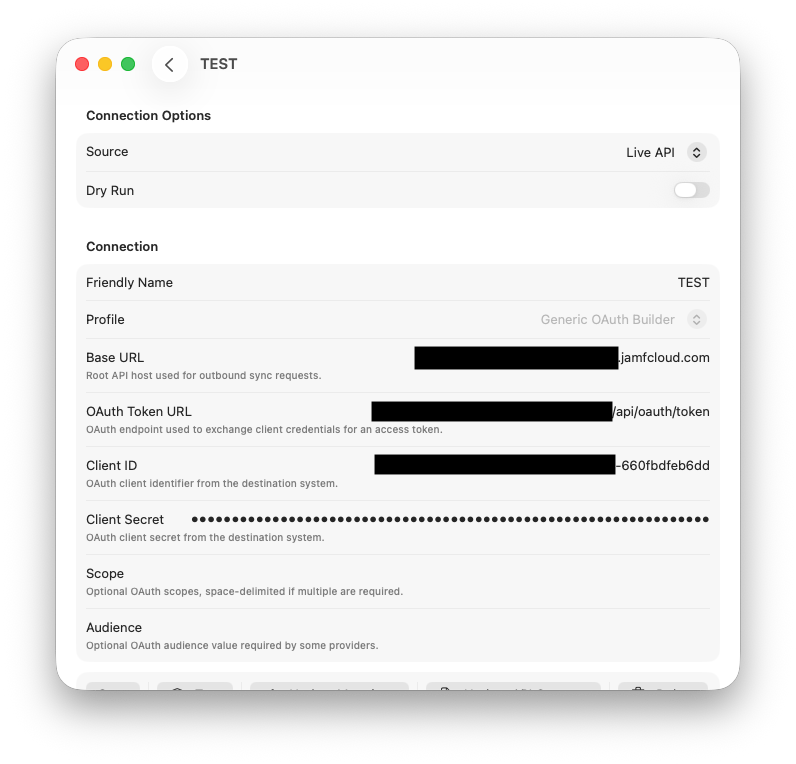

Step 1 OAuth Builder step 1 for connection basics and OAuth credentials

Enter connection basics and OAuth credentials, then validate authentication.

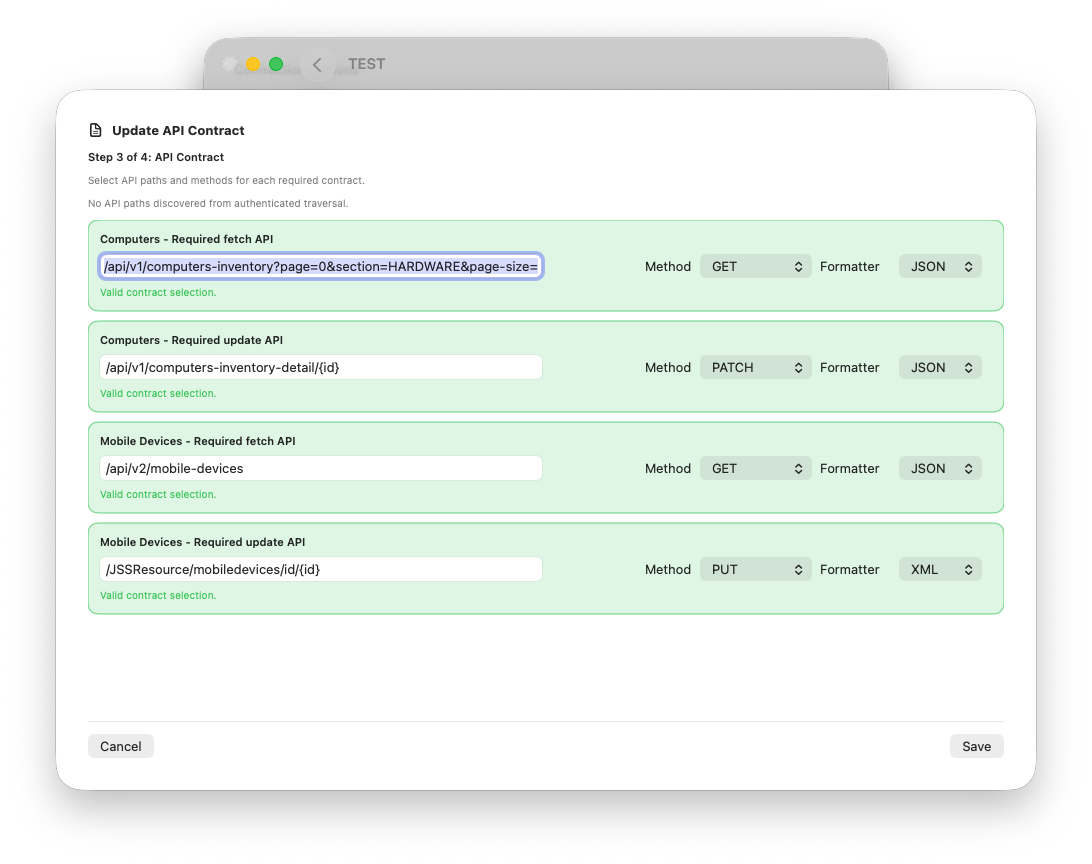

Step 2 OAuth Builder step 2 for API contract setup

Define API contract endpoints, methods, and formatter behavior for lookup and updates.

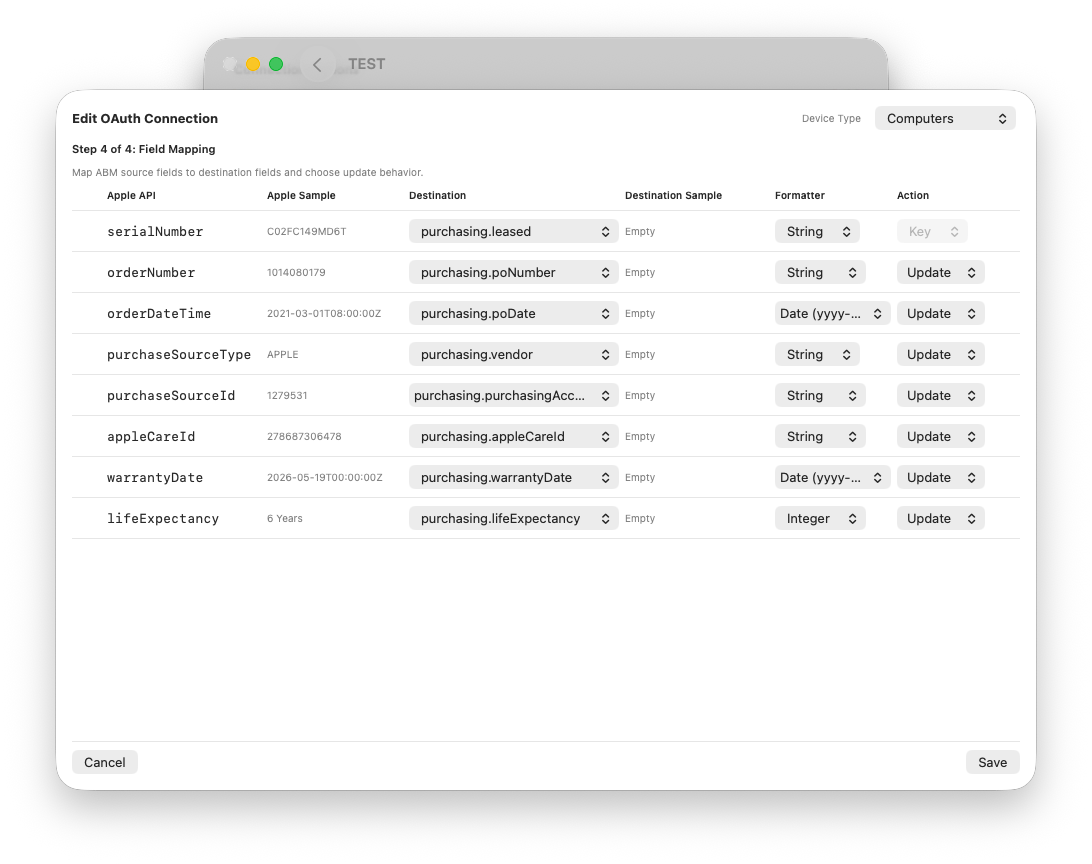

Step 3 OAuth Builder step 3 for ABM to destination field mapping

Review field mappings, action rules, and formatters before saving the Builder profile.

Updating Contract After Save

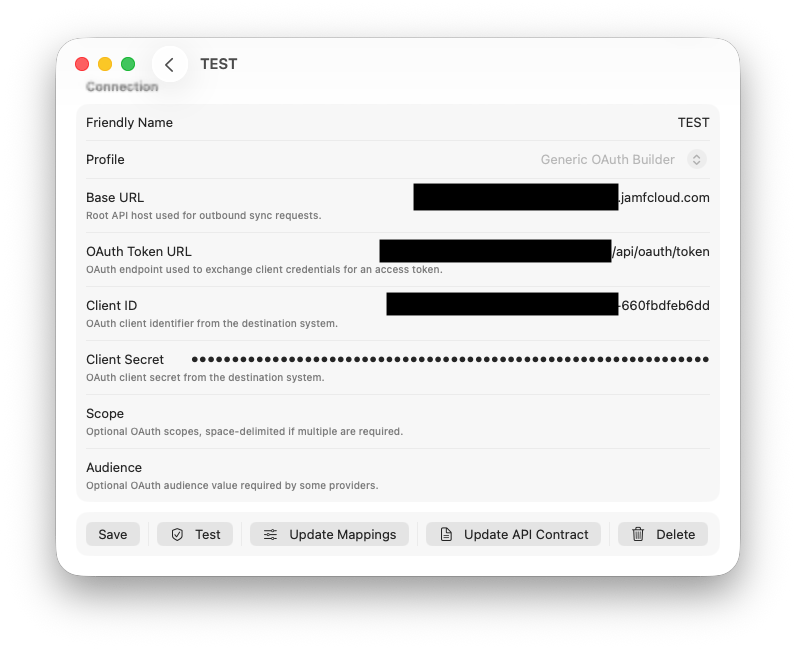

Update API Contract option in OAuth Builder connection settings

Where to Update Contract

  • Open the Builder connection in Settings → Connections.
  • Use Update API Contract for contract-only edits.
  • Use Update Mapping for mapping-only edits.

Why This Separation Matters

Contract errors (wrong path, method, or formatter) and mapping errors (wrong field selection or action) are different failure classes. Keeping these edit flows separate helps isolate root causes quickly.

Validation Sequence for Reliable Setup

Recommended Order

  1. Validate OAuth connectivity.
  2. Set and save API Contract.
  3. Open Update Mapping and set fields, actions, and formatters.
  4. Run a single-record dry run.
  5. Run a single-record live sync.
  6. Proceed to full sync after expected updates are confirmed.

Why Single-Record First

Single-record tests reduce risk and make troubleshooting precise. You can validate contract lookup, payload format, and field-level update behavior before any wide-scope write operation.

Common Failure Patterns and What They Usually Mean

Symptom Likely Cause Primary Check
405 Method Not Allowed Wrong method for endpoint Verify method in API Contract row
415 Unsupported Media Type Wrong formatter or content type Verify JSON vs XML formatter selection
400 INVALID_CONTENT field errors Field name or formatter mismatch Check mapped destination path and formatter
Destination missing Lookup path does not expose serial fields Check fetch contract path and serial visibility
No updates but sync completes Skip, no-change, or null-source behavior Review action rules, dry-run diagnostics, and source values

Operational Notes

Per-Field Skip Semantics

Skip is evaluated per field, not per entire record. A record can still update some fields while other fields are skipped by rule or by no-change comparison.

Null and Empty Source Protection

Outbound behavior should skip null or empty source fields rather than clear destination values. If destination values are unexpectedly cleared, inspect current logs and mapping state immediately.

Diagnostics as Source of Truth

Use Outbound Sync Jobs diagnostics and runtime logs to confirm:

  • Resolved destination ID
  • Lookup endpoint used
  • Method and formatter used
  • Skip or update reasons
  • Request-level failure details
