API Builder

This page explains the API Builder connection type in ABM Warranty. Builder is intended for cases where you need to define contract behavior directly instead of using a prebuilt profile.

Builder Wizard Flow (High-Level)

Step 1: API Connection Basics

Enter the base URL and API-key authentication details (API key, header name, and optional prefix). The connection must validate before contract setup can proceed. Typically the header is "Authorization" and prefix is "Bearer" which is common with bearer token APIs.

Step 2: API Contract

Define required fetch and update endpoints by entity, plus method and formatter. This contract drives lookup behavior, destination sampling, and outbound update requests. If your destination API supports direct serial lookup (for example {serial} path tokens), set that in the fetch contract for faster ID resolution.

Step 3: Field Mapping

Choose destination fields for ABM source fields and define action and formatter behavior for each. Builder does not assume profile defaults, so the destination field path is explicitly selected by the operator.

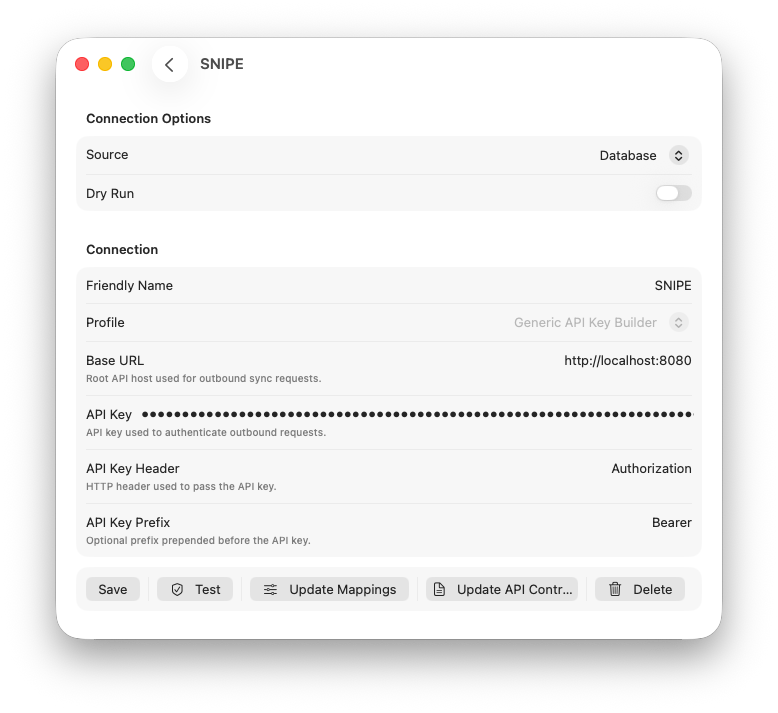

Step 1 API Builder step 1 for connection basics and API key authentication

Enter connection basics and API key authentication details, then validate connectivity.

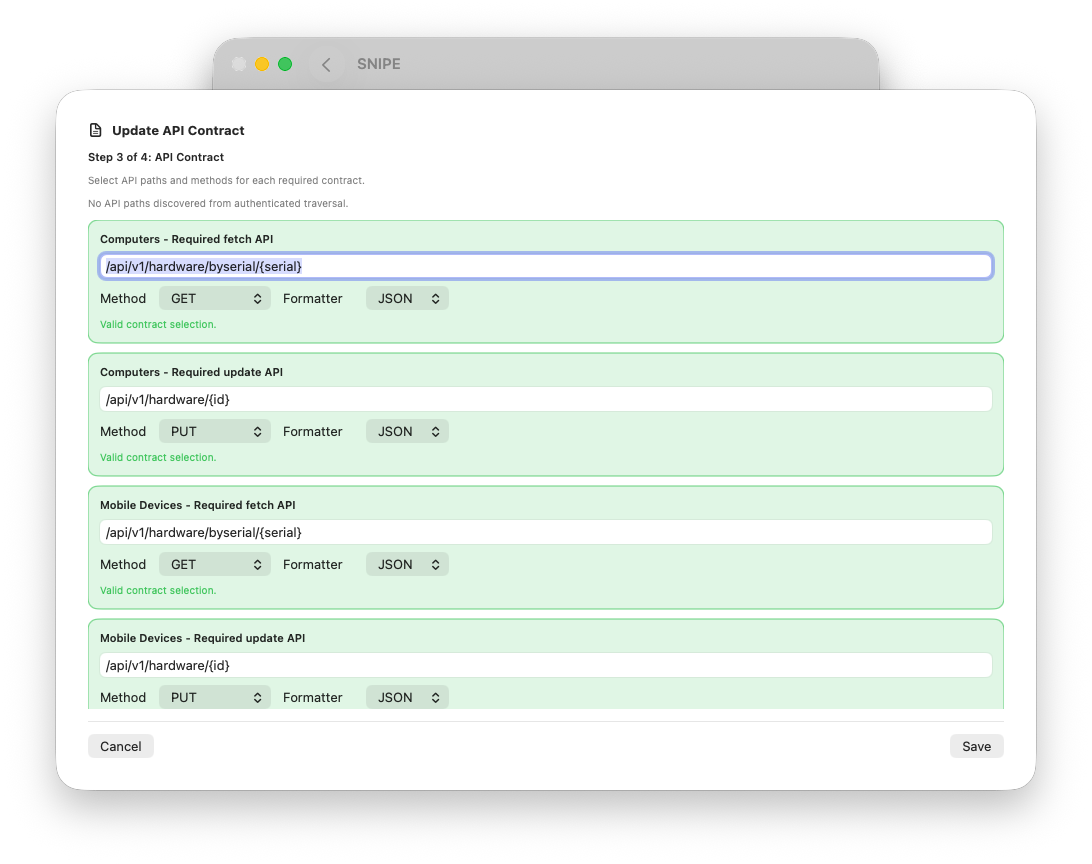

Step 2 API Builder step 2 for API contract setup

Define API contract endpoints, methods, and formatter behavior for lookup, detail resolution, and updates.

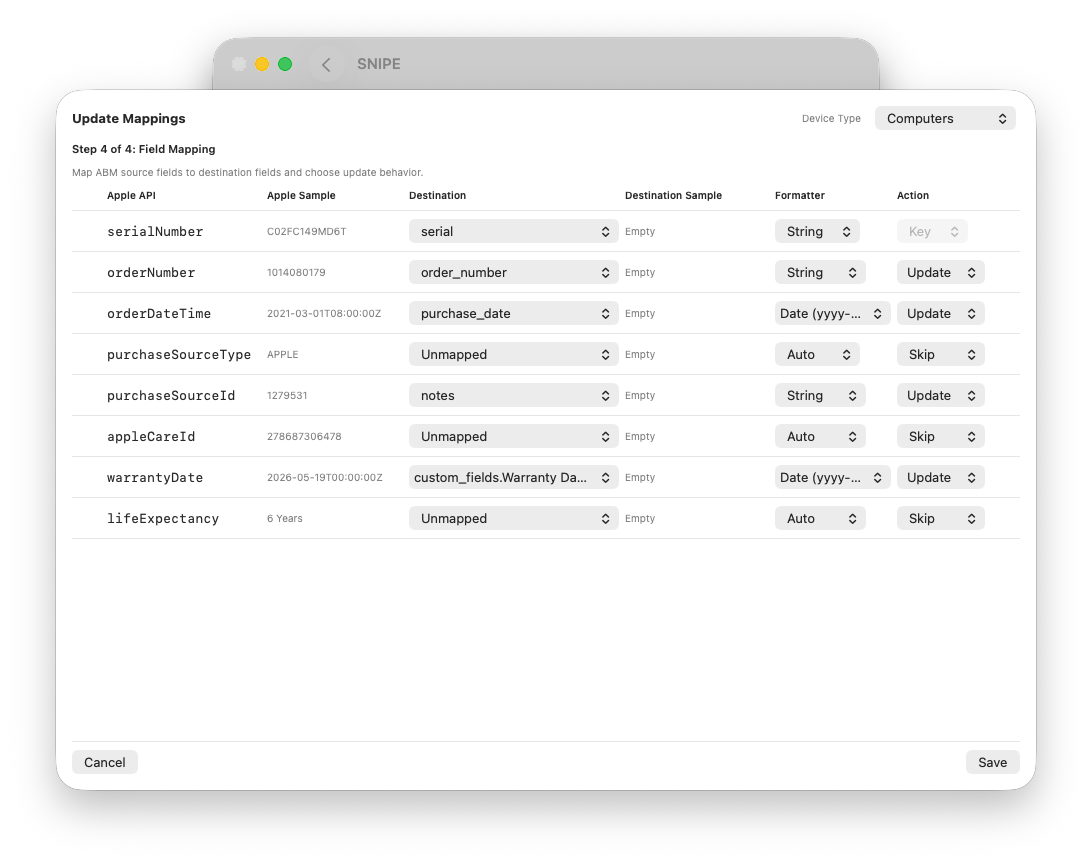

Step 3 API Builder step 3 for ABM to destination field mapping

Review field mappings, action rules, and formatters before saving the Builder profile.

Updating Contract After Save

Update API Contract option in API Builder connection settings

Where to Update Contract

  • Open the Builder connection in Settings → Connections.
  • Use Update API Contract for contract-only edits.
  • Use Update Mapping for mapping-only edits.

Why This Separation Matters

Contract errors (wrong path, method, formatter, or lookup token path) and mapping errors (wrong field selection or action) are different failure classes. Keeping these edit flows separate helps isolate root causes quickly.

Validation Sequence for Reliable Setup

Recommended Order

  1. Validate API-key connectivity.
  2. Set and save API Contract.
  3. Open Update Mapping and set fields, actions, and formatters.
  4. Run a single-record dry run.
  5. Run a single-record live sync.
  6. Proceed to full sync after expected updates are confirmed.

Why Single-Record First

Single-record tests reduce risk and make troubleshooting precise. You can validate contract lookup, payload format, and field-level update behavior before any wide-scope write operation.

Common Failure Patterns and What They Usually Mean

Symptom Likely Cause Primary Check
405 Method Not Allowed Wrong method for endpoint Verify method in API Contract row
415 Unsupported Media Type Wrong formatter or content type Verify JSON vs XML formatter selection
400 field errors Field name, payload envelope, or formatter mismatch Check mapped destination path, formatter, and contract payload shape
Destination missing Lookup path does not expose serial or ID Check fetch/detail contract path and serial/ID resolution behavior
No updates but sync completes Skip, no-change, or null-source behavior Review action rules, dry-run diagnostics, and source values

Operational Notes

Per-Field Skip Semantics

Skip is evaluated per field, not per entire record. A record can still update some fields while other fields are skipped by rule or by no-change comparison.

Null and Empty Source Protection

Outbound behavior should skip null or empty source fields rather than clear destination values. If destination values are unexpectedly cleared, inspect current logs and mapping state immediately.

Diagnostics as Source of Truth

Use Outbound Sync Jobs diagnostics and runtime logs to confirm:

  • Resolved destination ID
  • Lookup endpoint used
  • Method and formatter used
  • Skip or update reasons
  • Request-level failure details
